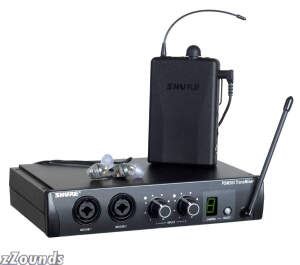

Shure PSM200 Series Wireless In-Ear System
| Product ID: |
SHUP2TRE2 |
| Manufacturer: |
Shure |
| List Price: |
$798.00 |
| Our Price: |
$599.00 |
| Shipping: |
FREE! |
| Similar Items: |
View |
| Wish List: |
 |
 |
|
 |
The PSM200 is a frequency-agile, in-ear monitor system for use in a wide variety of applications. Its many features help overcome the difficulties associated with stage monitoring.
Product Description
The PSM200 is a frequency-agile, in-ear monitor system for use in a wide variety of applications. Its many features help overcome the difficulties associated with stage monitoring.
Features:
Sound Quality Hear yourself perfectly
Mobility your mix moves with you onstage
Control Create your own monitor mix
Portability Easy to load in and out
Affordable, full-featured entry to personal monitoring
Includes:
P2T Wireless TransMixer
Key Features:
Built-in audio limiter
Front mounted antenna
2 mic/line input channels for mix control
ü rack space
Operating Controls:
Input level control
Frequency select
LED Indicators:
Tri-color input level
Frequency
Inputs: 2 Mic/line, XLR Õ in. combo input channels
Outputs: 2 XLR split outputs
P2R Hybrid Bodypack Receiver
Key Features:
Frequency locator
Built-in headphone limiter
Integrated cable management
High-impact plastic chassis
Õ in. Line inpit jack with high/low gain switch
Operating Controls:
Volume knob
Frequency select
LED Indicators:
Power
RF reception
Frequency
Limiter
Low Battery
E2 Dynamic-Driver Earphones
Unobtrusive, Low Mass/High EnergyTM Shure earphones are designed specifically for use with Shure PSM systems and deliver the incredible sound and performance ear buds and other headphones can't. Don't go In Ear without them.
Along with their high fidelity, full-bandwidth transducers, the natural design of these stereo earphones allows them to rest comfortably in the ear canal, providing a tight seal for sonic isolation and a snug fit. Shure Universal Earphones can be used with foam, flex or triple flange accessory sleeves (provided). The universal 3.5mm (1/8 in.) plug connects to Shure's PSM body pack receivers, as well as many other personal audio applications where high fidelity is deemed appropriate.
Get In Ear From Here
Whether you're playing live or rehearsing, you need to hear yourself to be your best. That's what monitoring is all about. Yet some performers still struggle with booming floor wedge monitors and loud stage volume. Introducing the PSM 200 - the personal monitoring breakthrough performers have been waiting for. Featuring smart, versatile components that grow with you as your needs change, the PSM 200 series is a practical alternative to floor wedges for performers who want to start out In Ear and stay there.
Technical Description
RF Carrier Frequency Range: 518š865 MHz (country dependent)
Operating Range: 100 m (300 ft.) under optimal conditions
Audio Frequency Response: 30 Hz to 12 kHz (+/š3 dB); earphone dependent
Total Harmonic Distortion (1 kHz): <1% typical (Ref. ±35 kHz deviation)
Modulation: FM ±35 kHz Deviation (Nominal)
Signal-to-Noise Ratio: 80 dB typical (A-weighted)
Operating Temperature: š7 C to +49 C (+20 F to +120 F)
P2T
RF Output Power: 30 mW (+15 dBm) typical conducted
Modulation Limiter: Internal peak limiter (>10:1 hard knee compression)
Antenna: Õ in. wavelength, semi-rigid, PCB Mount
Current: 170 mA maximum
Dimensions: 220 mmx 140 mm x 40 mm (8.6 in. x 5.6 in. x 1.7 in.)
Net Weight: 370 g (13 oz.)
RF Sensitivity: š109 dBm typical
Squelch Threshold: š102 dBm typical
Antenna: Attached Whip
Audio Input Connector
Connector Type: Õ in. Mono
Impedance: 1 M
Maximum Input Level: LO = +0 dBu, HI = š10 dBu
Frequency Response: 30 Hz to 20 kHz (+/š3 dB); earphone dependent
Power Requirements: 9 V alkaline battery, Duracell type MN1604 recommended
Battery Life
Volume Dependent
Wired (RF Off): 6 hours
Wireless (RF On): 4 hours
Audio Output Connector: 1/8 in. (3.5 mm)
Minimum Load Impedance: 8 Ω
Net Weight: 100 g (3.52 oz.), less battery
Overall Dimensions: 122 mm x 73 mm x 32 mm (4.809 in. x 2.875 in. x 1.251 in.)
E2
Net Weight: 30g (1 oz)
Transducer Type: dynamic
Sensitivity (at 1 kHz): 105 dB SPL/mW
Impedance (at 1 kHz) 16 ohms
Output Connector: Gold-plated stereo, 3.5 mm (1/8 in.) phone plug
Cable Length: 1.57 m (62 in.)
