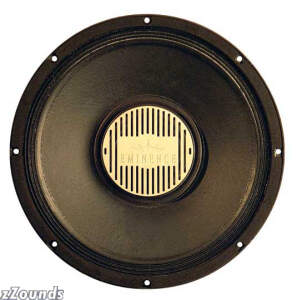

Eminence Kilomax 15 Bass Speaker (1250 Watts, 15 in.)
| Product ID: |
EMNKILO15A |
| Manufacturer: |
Eminence |
| List Price: |
$289.00 |
| Our Price: |
$249.00 |
| Shipping: |
FREE! |
| Similar Items: |
View |
| Wish List: |
 |
 |
|
 |
Designed for high power applications in main PA systems and sub-woofers, there is nothing that shakes the house like a KILOMAX. A massive 109 oz. cast frame magnet structure, double spider suspension, and integrated front loaded heat sink all combine to p
Product Description
Designed for high power applications in main PA systems and sub-woofers, there is nothing that shakes the house like a KILOMAX. A massive 109 oz. cast frame magnet structure, double spider suspension, and integrated front loaded heat sink all combine to pound out whatever you pound in.
Features:
Kapton coil former
Ferrite magnet
Die-cast aluminum basket
Polyamide-imide coated copper voice coil
Paper cone/cloth cone edge
Kilomax alloy heatsink
Technical Description
Nominal Basket Diameter: 15 in., 381mm
Impedance: 8 ohms
Power Rating: 1250W rms
Resonance: 41Hz
Usable Frequency Range: 35Hz - 1.5kHz
Average Sensitivity 1W @ 1m: 99dB
Magnet Weight: 109 oz.
Gap Height: 0.375 in., 9.52mm
Voice Coil Diameter: 4 in., 101.6mm
Overall Diameter: 15.21 in., 386.4mm
Baffle Hole Diameter: 14.0 in., 355.5mm
Front Sealing Gasket: fitted as standard
Rear Sealing Gasket: fitted as standard
Fixing Holes Diameter: 0.275 in., 7mm
Fixing Hole B.C.D.: 14.56 in., 369.9mm
Depth: 6.42 in., 163mm
Shipping Weight: 28 lbs, 12.7 kg
Resonant Frequency: 41Hz
Impedance (RE): 4.97 ohms
Coil Inductance (Le): 1.78mH
Electromagnetic Q (Qes): 0.40
Mechanical Q (Qms): 8.80
Total Q (Qts): 0.39
Compliance Equivalent Volume (Vas): 154.5 liters, 5.46 cu. ft.
Peak Diaphragm Displacement Volume (Vd): 680cc
Mechanical Compliance of suspension (Cms): 0.15mm/N
BL Product (BL): 17.7 T-M
Diaphragm Mass inc. Airload (Mms): 98 grams
Equiv. Resistance of mechanical suspension loss (Rms): 2.91N*sec/M
Efficiency Bandwidth Product (EBP): 102
Voice Coil Overhang (Xmax): 7.9mm
Surface Area of Cone (Sd): 856.3cm2
Impedance at Resonance (Zmax): 113 ohms
